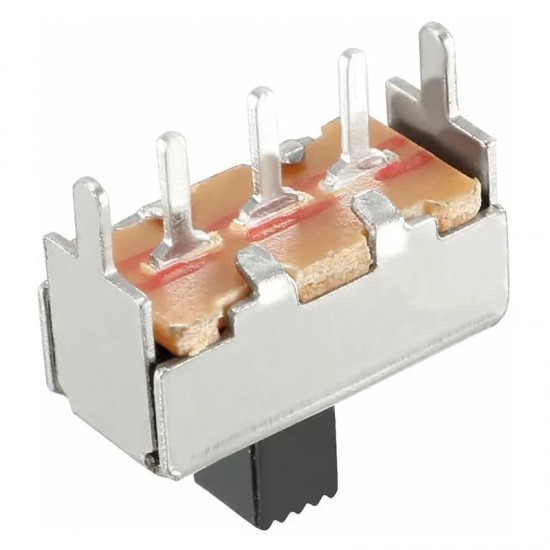

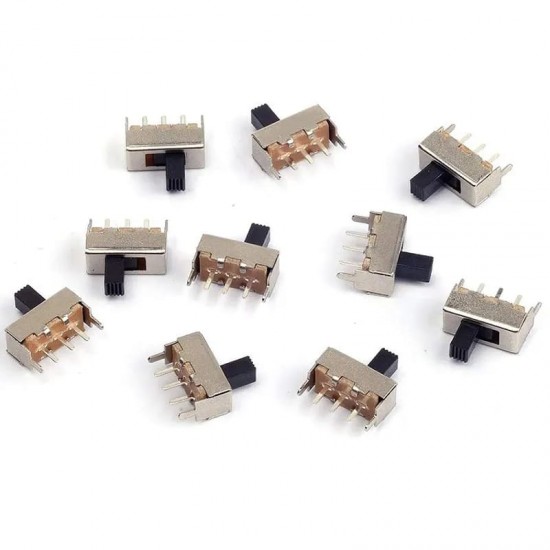

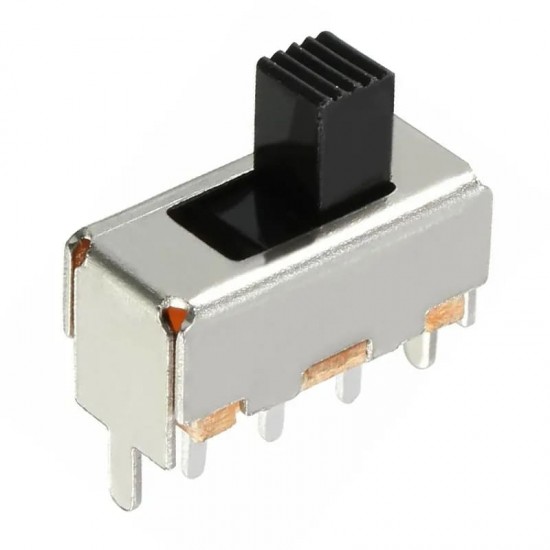

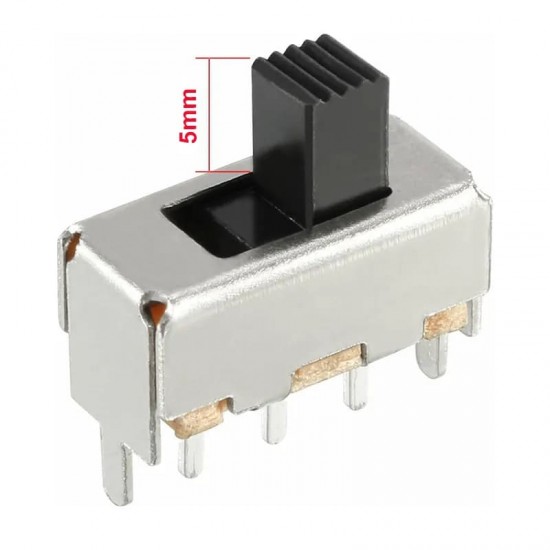

Slide Switch 3-Pin 2-Position SPDT, 0.5A 50V

This is a 0.5A 50V SPDT Slide Switch. These are great on/off power switches for low-power electronics like radio, kitchen appliances, etc. They can also be used as a convenient way to choose between two analog or digital input signals. They are built from high-power steel. The three pins have a 2mm pitch spacing that works with standard solderless breadboards. The handle is built from glass mix epoxy material which provides easy on and off switching

Features:

• Long Life.
• High number of Operations.
• Durable in use.
• High-temperature resistance.
• Mini size offers easy installation.
• Simple on/off switching.

Specifications:

• Contact Voltage DC Max 50V
• Contact Current Max 0.5A
• Insulation Resistance 100mΩ
• Switch Type SPDT
• Switch Mounting PCB
• Body Material Metal and Plastic
• Contact Resistance 30mΩ
• Operating Temperature Range -25°C to +80°C
• Length ~12mm
• Width ~6mm
• Height ~11mm

Package Includes:

• 1 x Slide Switch 0.5A 30V SPDT.

*Image shown is a representation only. Color may vary depending on Stock.
