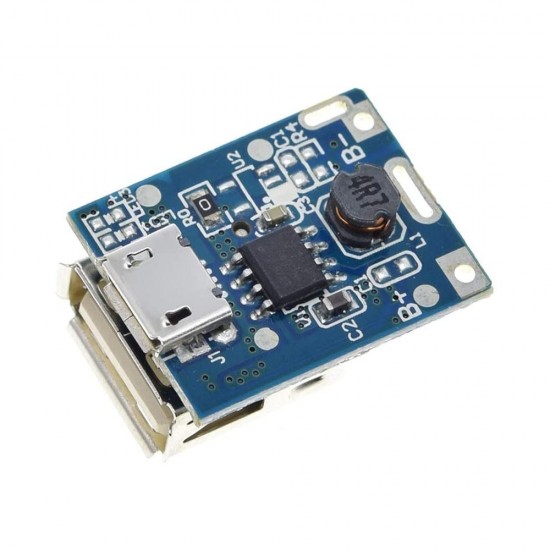

Battery Charging Discharge Module Power Bank 2-in-1 Board Micro USB

The HT4928S/SM5401 is a highly integrated mobile power supply management chip designed for lithium-ion battery applications. It combines charging and discharging capabilities in a single module, making it ideal for building custom power banks.

Make your power-bank at home with this module.

Built-in charge and discharge power MOS. The existing power management chip on the market HT4928S/SM5401 which the parameters is same as134N3P. It has protection functions, protect from over-charger / over-discharge / over-load (support charger and discharge at the same time)

The step-up charging board can be connected to a lithium battery and connected in multiple sections of lithium batteries, as long as the voltage is 3.7-4.2V in parallel (only be connected in parallel, not in series)

Features:

• Chipset: HT4928S / SM5401 (interchangeable; same parameters as 134N3P)
• Functionality:
  • Charge management
  • Boost discharge management
  • LED indicator block
  • Built-in power MOSFETs

• Protection:
  • Overcharge
  • Over-discharge
  • Overload
  • Simultaneous charge/discharge support

Specifications:

•     Input: 3.7-5.5V 1A
•     Output: 5V 1A
•     Dimensions: ~22*17*11mm
•     Charging Interface: Micro USB
•     Charge status indication: Red light flashes when charging; Long red light when full
•     Charging instruction: The red-light flashes while charging. Red light is always on, charging is complete
  it has protection functions, protect from over-charger / over-discharge/ over-load

•     The use of welding Note B + positive and B-negative cannot be reversed

Battery Compatibility:

• Works with single or multiple lithium-ion cells connected in parallel only (not in series)

• Voltage range: 3.7V–4.2V

Usage Notes:

• Polarity matters: B+ and B– terminals must be connected correctly

• Ideal for DIY power bank builds, small electronics, and portable charging solutions

Package Includes:

• 1 x 5V Step-Up Power Module Lithium Battery Charging Protection Board

*image shown is a representation only.
