KK2.15 LCD Flight Control Board 6050MPU 644PA Multirotor update version for KK2 kk2.1 with Case Free !!!

KK2.15 LCD Flight Control Board 6050MPU 644PA Multirotor update version for KK2 kk2.1 with Case

Description:

The KK2.1.5 is next big evolution of the first generation KK flight control boards. The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built in software makes install and setup easier than ever. A host of multi-rotor craft types are pr-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and you’re ready to go! All of which is done with easy to follow on screen prompts.

Features:

• Size: 50.5mm x 50.5mm x 12mm.
• Weight: 21 gram (Inc Piezo buzzer).
• IC: Atmega644 PA.
• Gyro/Acc: 6050MPU InvenSense Inc.
• Auto-level: Yes.
• Input Voltage: 4.8-6.0V.
• AVR interface: standard 6 pin.
• Signal from Receiver: 1520us (5 channels).
• Signal to ESC: 1520us.
• Firmware Version: 1.9S.
• Pr-installed firmware.

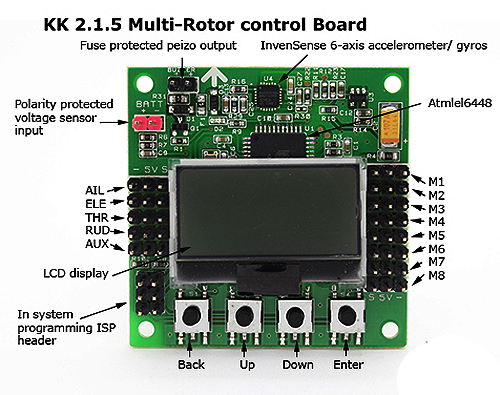

Pinouts:

Package included:

• 1 x KK2.15 LCD Flight Control Board 6050MPU 644PA Multirotor update version for KK2 kk2.1 with Case

*image shown is original.
