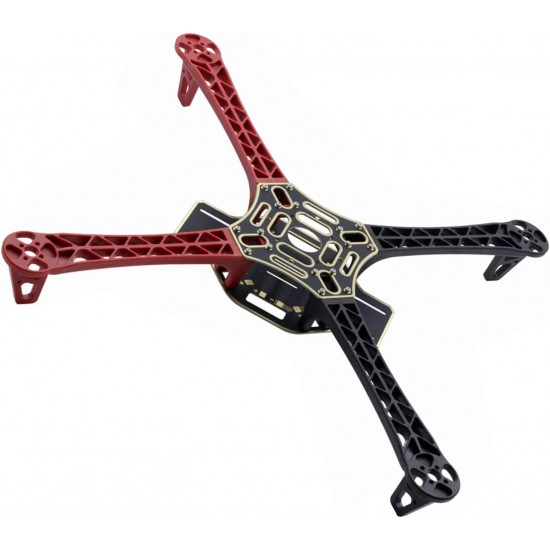

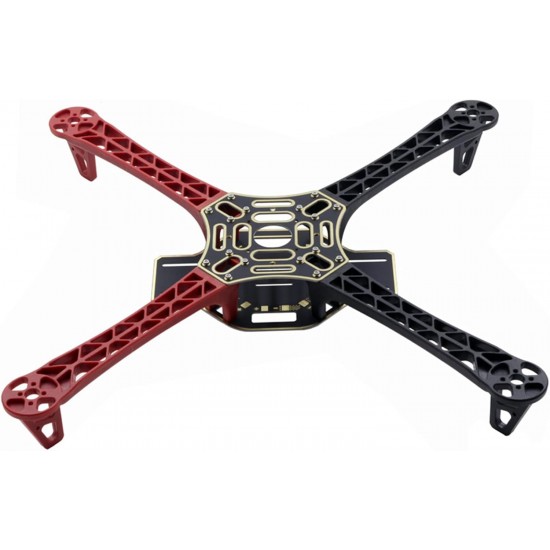

F450 Quadcopter drone frame Kit with integrated PCB

The F450 Quadcopter Frame Kit is a robust and lightweight 4-axis drone frame designed for DIY drone builders, hobbyists, and aerial robotics enthusiasts. Built from high-strength glass fiber and polyamide nylon, it features an integrated PCB (Printed Circuit Board) for clean and efficient ESC power distribution—eliminating the need for a separate power distribution board. With pre-threaded brass sleeves, reinforced arms, and large mounting tabs, this frame ensures easy assembly, durability, and compatibility with most standard flight controllers.

Features:

• Wheelbase: 450mm – ideal for medium-sized quadcopters

• Material: Polyamide-Nylon composite

• Integrated PCB: Direct ESC soldering for neat wiring and reduced weight

• Arm Design: Reinforced arms with support ridges for better stability and crash resistance

• Motor Mounting Holes: Compatible with 16/19mm brushless motors

• Assembly: Pre-threaded brass sleeves for secure and easy installation

• Mounting Tabs: Large tabs for camera gimbals or accessories

• Color-Coded Arms: Red and white arms for easy orientation

Applications:

• Aerial photography, FPV, agriculture drones, educational kits, and autonomous flight systems

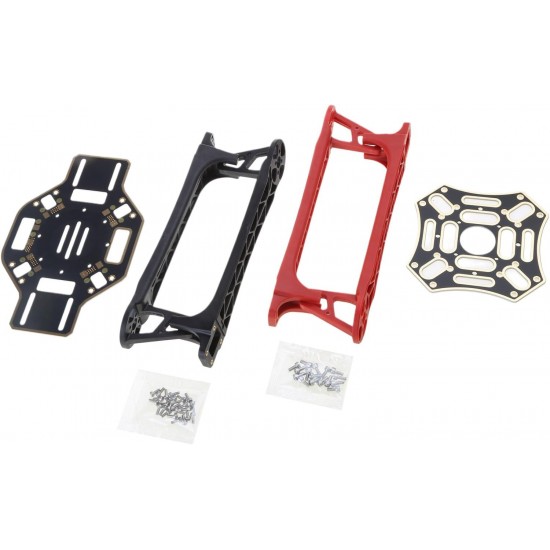

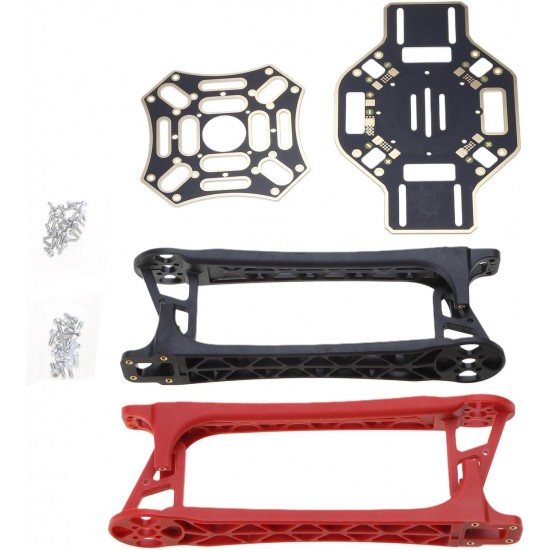

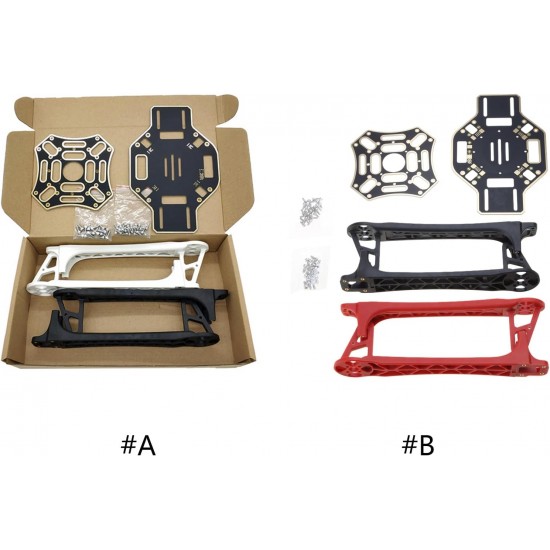

Package Includes:

• 1× Top and Bottom Frame Plates with Integrated PCB

• 4× Arms (2 Red/2 White/2 Black)

• 1× Accessories Set (screws)

*Image shown is a representation only.
