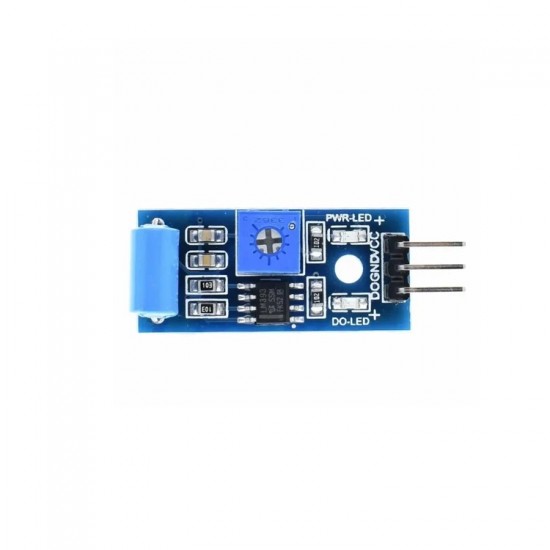

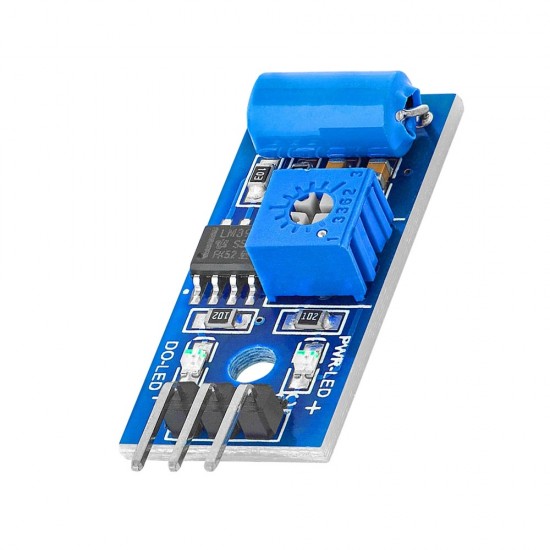

Vibration Sensor SW-420 Module

The SW-420 Vibration Sensor Module is a cost-effective sensor used to detect vibrations and shocks in its environment. It consists of an SW-420 vibration sensor, an LM393 comparator, and a 10K potentiometer to adjust sensitivity.

Features & Specifications:

• Operating Voltage: 3.3V – 5V DC

• Current Consumption: 15mA

• Digital Output: Logic High when vibration is detected, Logic Low otherwise

• Adjustable Sensitivity: Via onboard potentiometer

• Compact Size: ~3.2cm x 1.4cm

• Applications: Theft alarms, earthquake detection, smart cars, motorcycle alarms

How It Works

The SW-420 sensor detects vibrations and sends a signal to the LM393 comparator, which then outputs a digital HIGH or LOW signal depending on the vibration intensity. The sensitivity can be adjusted using the potentiometer.

Interfacing with Arduino

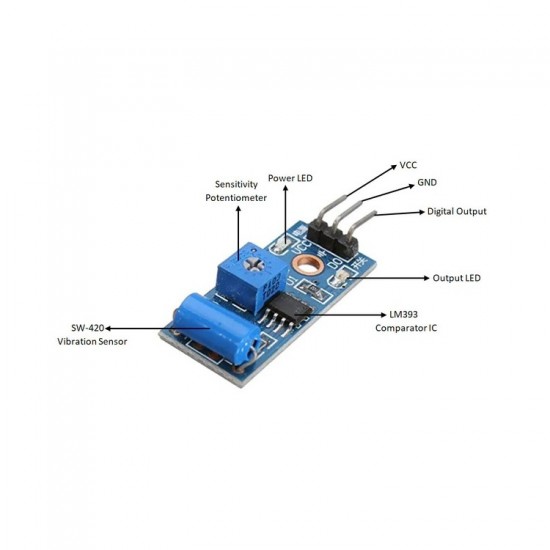

The module can be easily connected to an Arduino or other microcontrollers. It has three pins:

• VCC: Power supply (3.3V–5V)

• GND: Ground connection

• D0: Digital output (HIGH when vibration is detected, LOW otherwise)

Would you like a step-by-step guide on how to use it with an Arduino? Here's guide.

Package Contents:

• 1 x SW-420 Vibration Sensor Module

* Images shown is a representation only.
